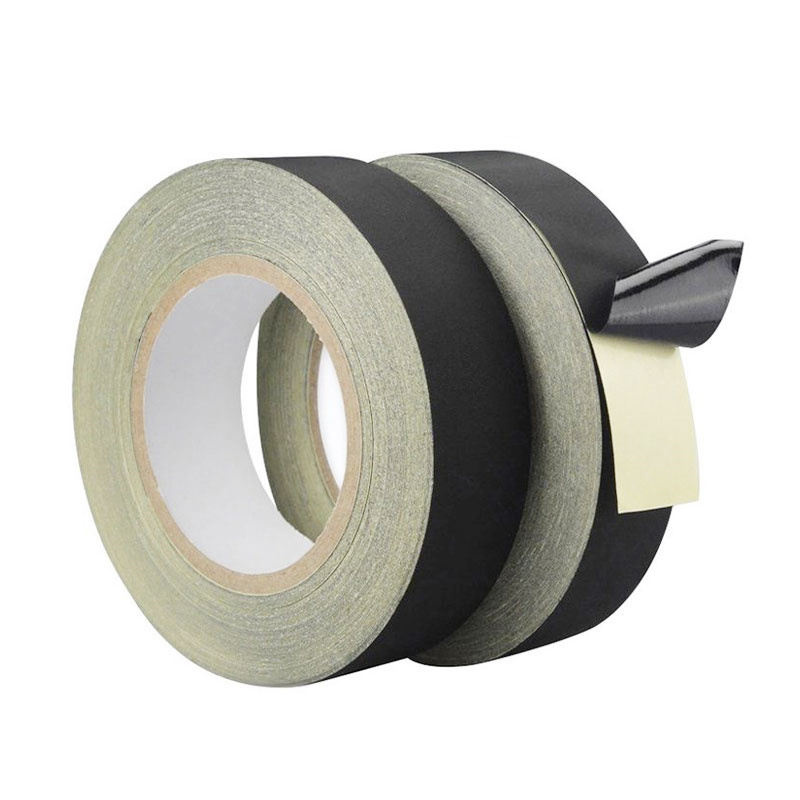

Black Acetate Cloth Tape is a flexible adhesive tape designed for electrical insulation, wire harness wrapping, coil protection, and automotive electrical applications. Made with an acetate cloth backing and pressure-sensitive adhesive, it offers conformability, reliable bonding, and insulation performance for a variety of industrial uses.
Item No :
F6029AProduct Origin :
DONGGUANColor :
WHITE/BLACKLead Time :
15 Working daysWidth :
1 -1020mmLENGTH :
20/33/50mThickness(mm) :
0.12mm/0.22mm/etcBlack Acetate Cloth Tape's flexible cloth backing allows the tape to wrap around wires, cables, coils, and irregular surfaces with ease. Depending on the selected grade, flame-retardant and heat-resistant options are available to meet different application requirements.

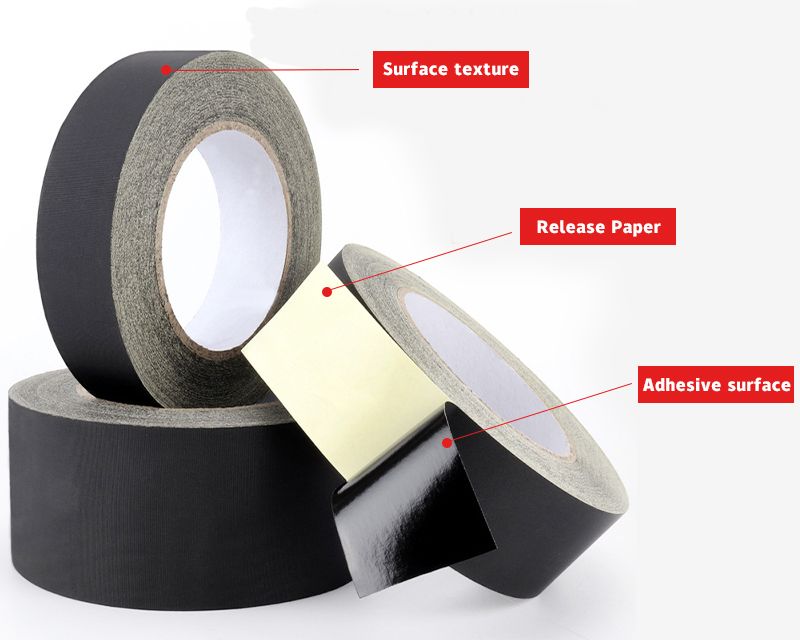

1) Product Structure:
Acetate cloth
Acryl adhesive
Release paper
Flame retardant
2) Color: White or black.
3) Characteristics:
| Material | Glass fiber cloth |
| Total Thickness | 0.2±0.002(mm) |
| Adhesive | Acrylic |
| Adhesion | 900g±50(N/25mm) |
| Elongation | ＞200% |
| Holding viscosity | ≥60 Min |
| Tensile strength | ＞1.9kgf(N/25mm) |
| Heat resistance | 120℃ |
| Voltage Resistance | 4000KV |
4) Application:It can be uses as composite material for layer insulation and bundle of transformers (especial for high-frequency transformer, microwave oven transformer), fixation of parts of oven, and winding and fixation of ceramic heater and quartz tubes.
