Acetate cloth tape uses imported acetate fiber as substrate and coated on rubber adhesive.
It has high temperature resistance ,corrosion resistance,ageing-resistance and high insulation printable and stable property.
Item No :
F6029AProduct Origin :
DONGGUANColor :
WHITE/BLACKLead Time :
15 Working daysWidth :
1 -1020mmLENGTH :
20/33/50mThickness(mm) :
0.12mm/0.22mm/etcAcetate cloth adhesive tape is combined by acrylic series adhesive on one face with acetate cloth as carrier, while antiflaming acetate cloth adhesive tape is added with flame retardant.

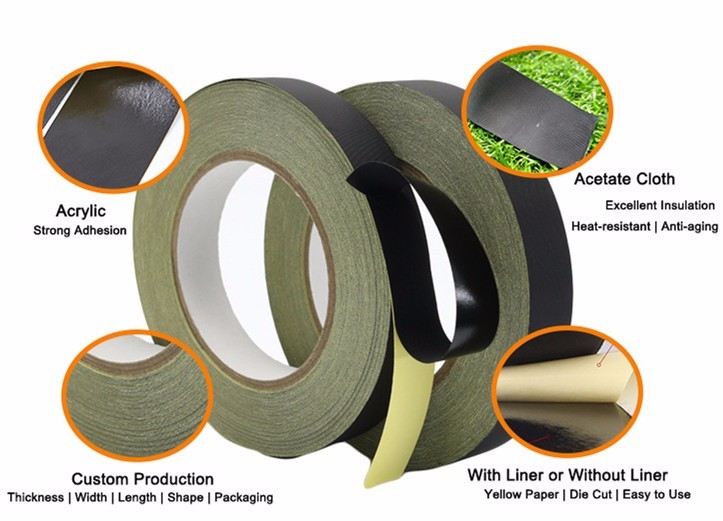

1) Product Structure:
Acetate cloth
Acryl adhesive
Release paper
Flame retardant
2) Color: White or black.
3) Characteristics:
-Acetate cloth adhesive tape with backing paper or not is available.
-No adhesive residue after tearing off.
-Good stickiness for adhered objects without any treatment of primer.
-By adopting special adhesive, it has excellent initial adhesion and flame retardation.
Material | Glass fiber cloth |
Total Thickness | 0.2±0.002(mm) |
Adhesive | Acrylic |
Adhesion | 900g±50(N/25mm) |
Elongation | >200% |
Holding viscosity |
≥60 Min |
Tensile strength |
>1.9kgf(N/25mm) |
Heat resistance |
120℃ |
Voltage Resistance | 4000KV |

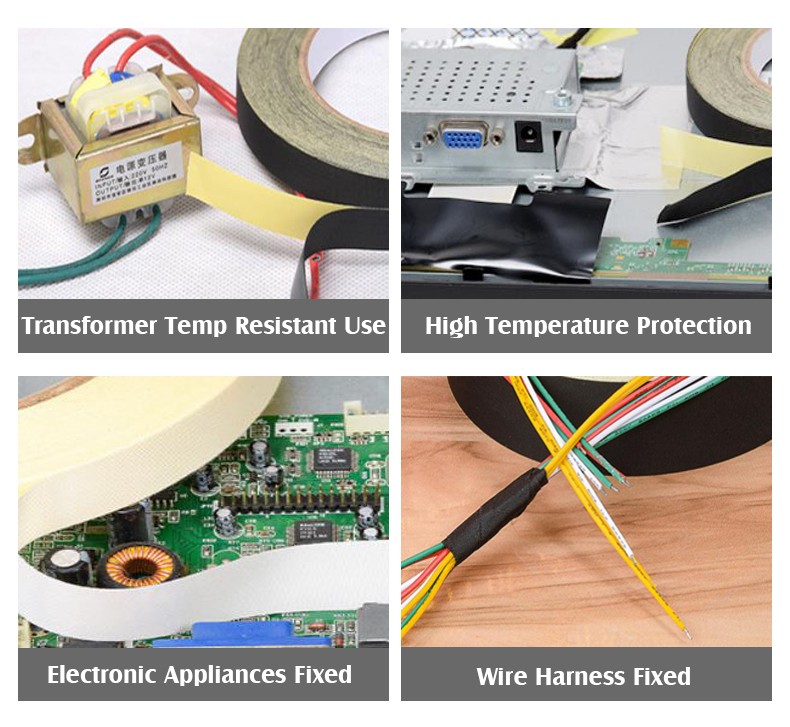

4) Application:
It can be uses as composite material for layer insulation and bundle of transformers (especial for high-frequency transformer, microwave oven transformer), fixation of parts of oven, and winding and fixation of ceramic heater and quartz tubes.
