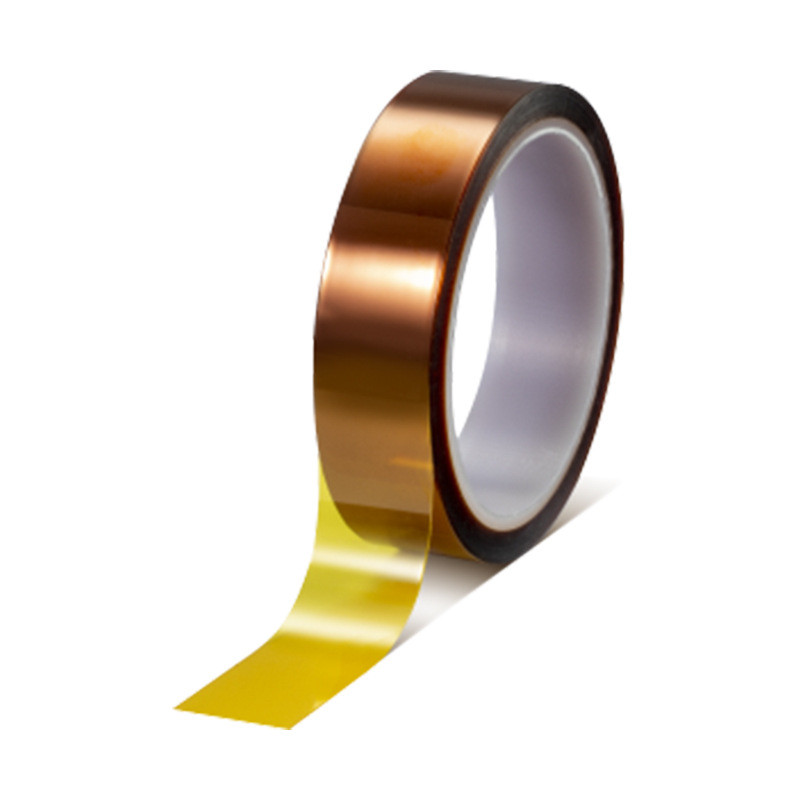

Die Cut High Resistant Electrical Insulation Polyimide Film PI Tape for PCB Board
Silicone Pi Film Adhesive Tape
Heat Press Transfer Masking Polyimide tape
heat resistant kapton tape
Kaptons Polyimide Tape With Release Liner
Silicone Pi Film Adhesive Tape

Die Cut High Resistant Electrical Insulation Polyimide Film PI Tape for PCB Board

Gold finger tape, also known as polyimide tape, is a polyimide film used as a substrate to coat high-performance silicone pressure-sensitive adhesives on one side. High-precision coating reaches ± 2.5um, no scratches, drawing and other phenomena, good shear, easy punching die-cutting process, with excellent high temperature resistance and solvent resistance!

  • Item No :

    S0619B
  • Product Origin :

    DONGGUAN
  • Color :

    Amber
  • Lead Time :

    15 Working days
  • Width :

    2-1000mm
  • LENGTH :

    33m or customized
  • Thickness(mm) :

    0.06mm-0.3mm

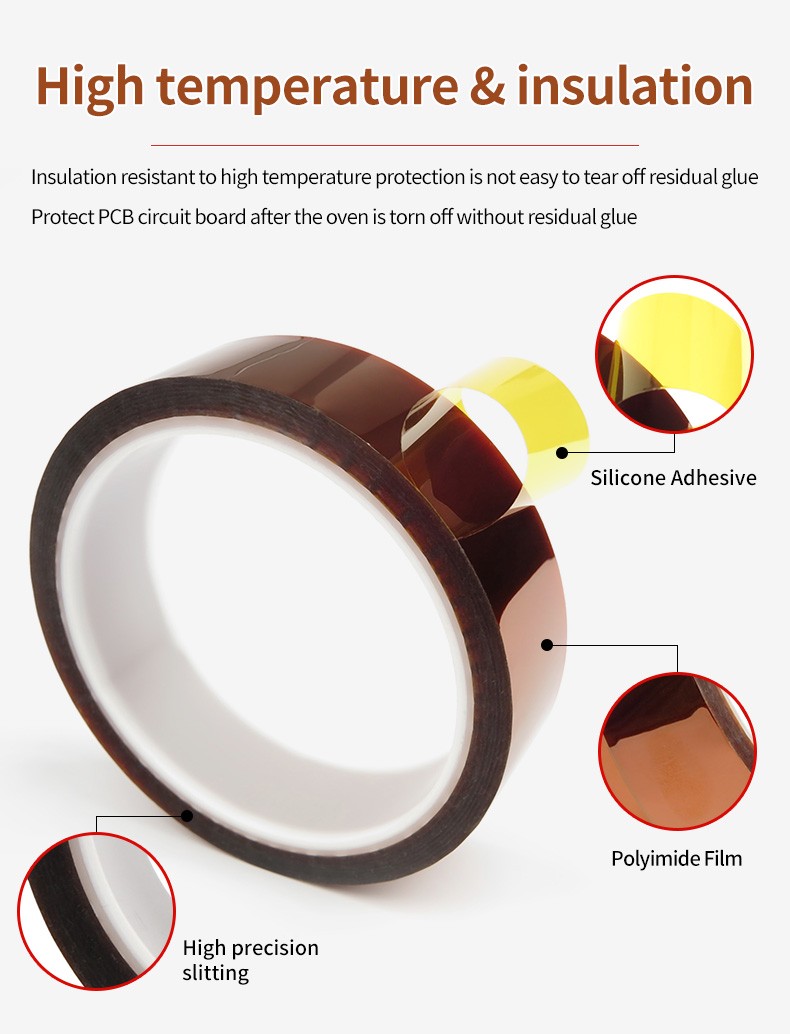

High temperature Polyimide Tape







• The polyimide film does not soften at elevated temperatures, thus the film provides an

excellent release surface at elevated temperatures

• Is dimensionally stable at high temperatures, which helps reduce rework, helping to enable high productivity

• Is flame retardant, chemical and radiation resistant which helps protect surfaces to help reduce replacement costs

• The silicone adhesive’s high temperature performance helps reduce adhesive transfer which helps to eliminate

cleaning, enabling high productivity

• Polyethylene tape core instead of cardboard

  •

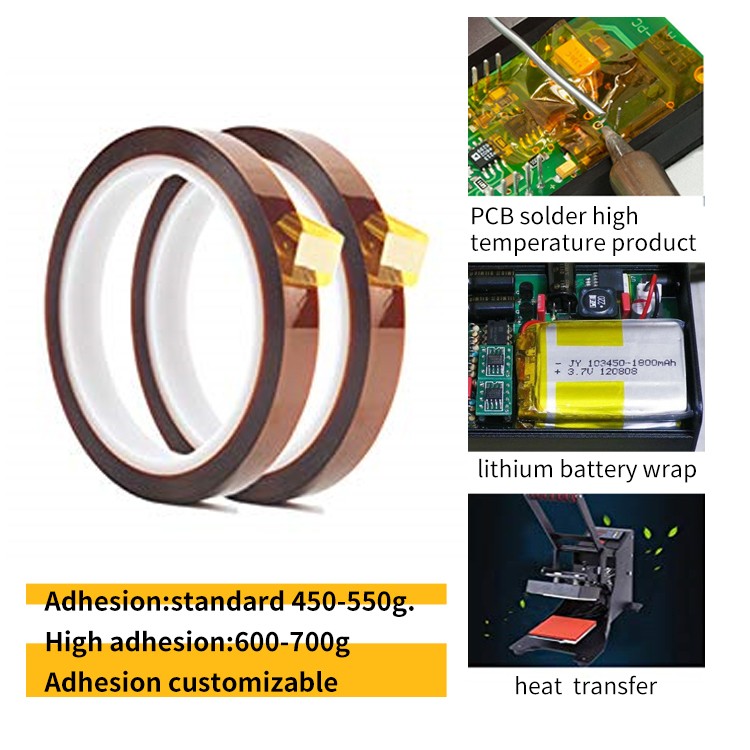

Tape is widely used in various industries



(1) Heat press, Solar Panels.

(2) Fiber Optics Cables.
(3) High temperature masking.

(4) All kinds of insulation Die-cuts, Discs.

(5) Galvanization and welding protection.

(6) Electrical insulation for transformer,motor,coils.
(7) Protection of PCB in wave soldering and reflow soldering.
(8) Used for fixing the lithium batter"s positive pole and negative pole in high grade electric appliance.









Physical Properties



Product name High temperature single sided polyimide film tape
Color Amber/Brown/Gold
Jumbo roll size 610mm*33m
Long term temperature resistance 180° C
Short term temperature resistance 280° C
Custom service
Slitting / Die cutting / Packaging
Free sample
A4 size free sample
