High-temperature polyimide tape with silicone adhesive for PCB masking, gold finger protection and electrical insulation.

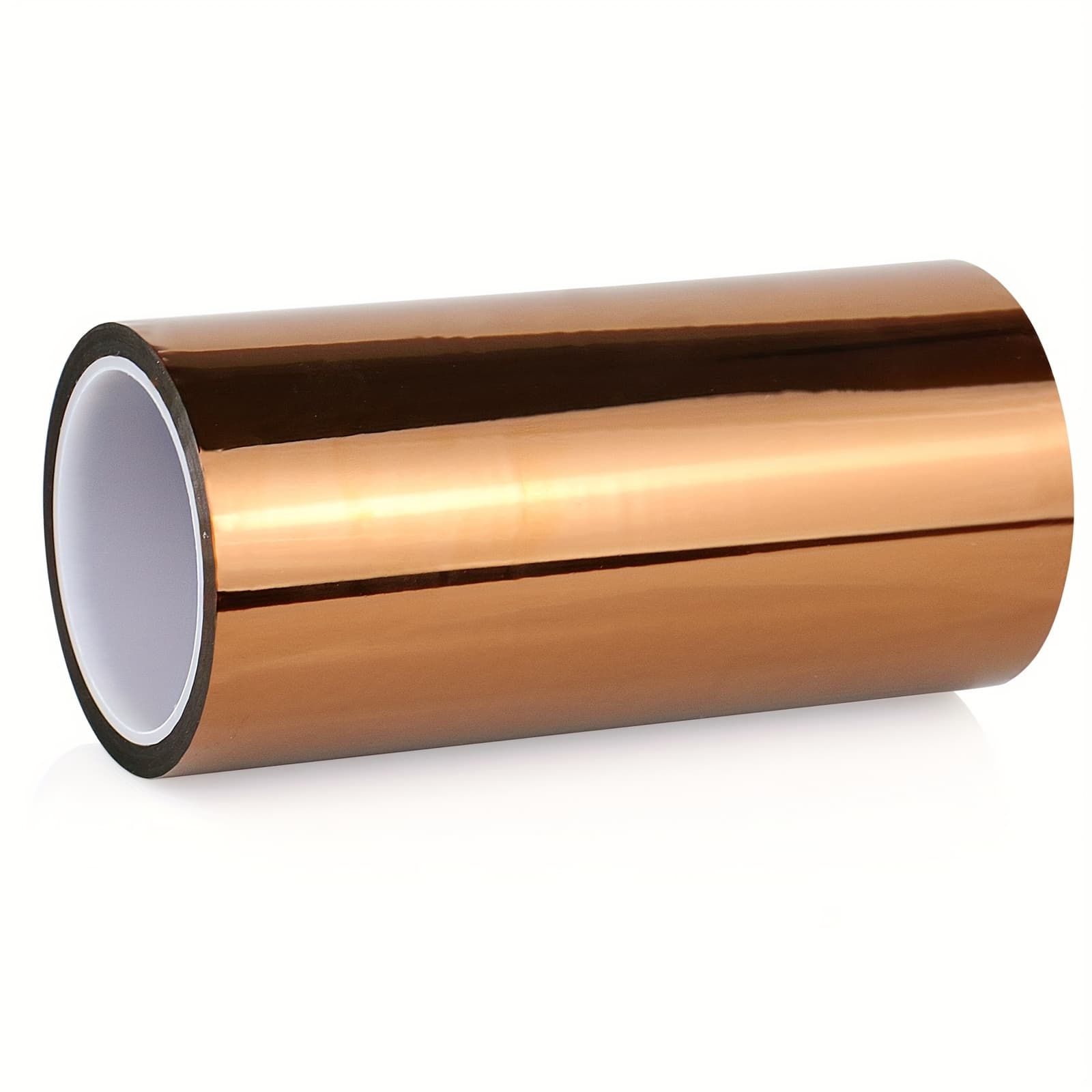

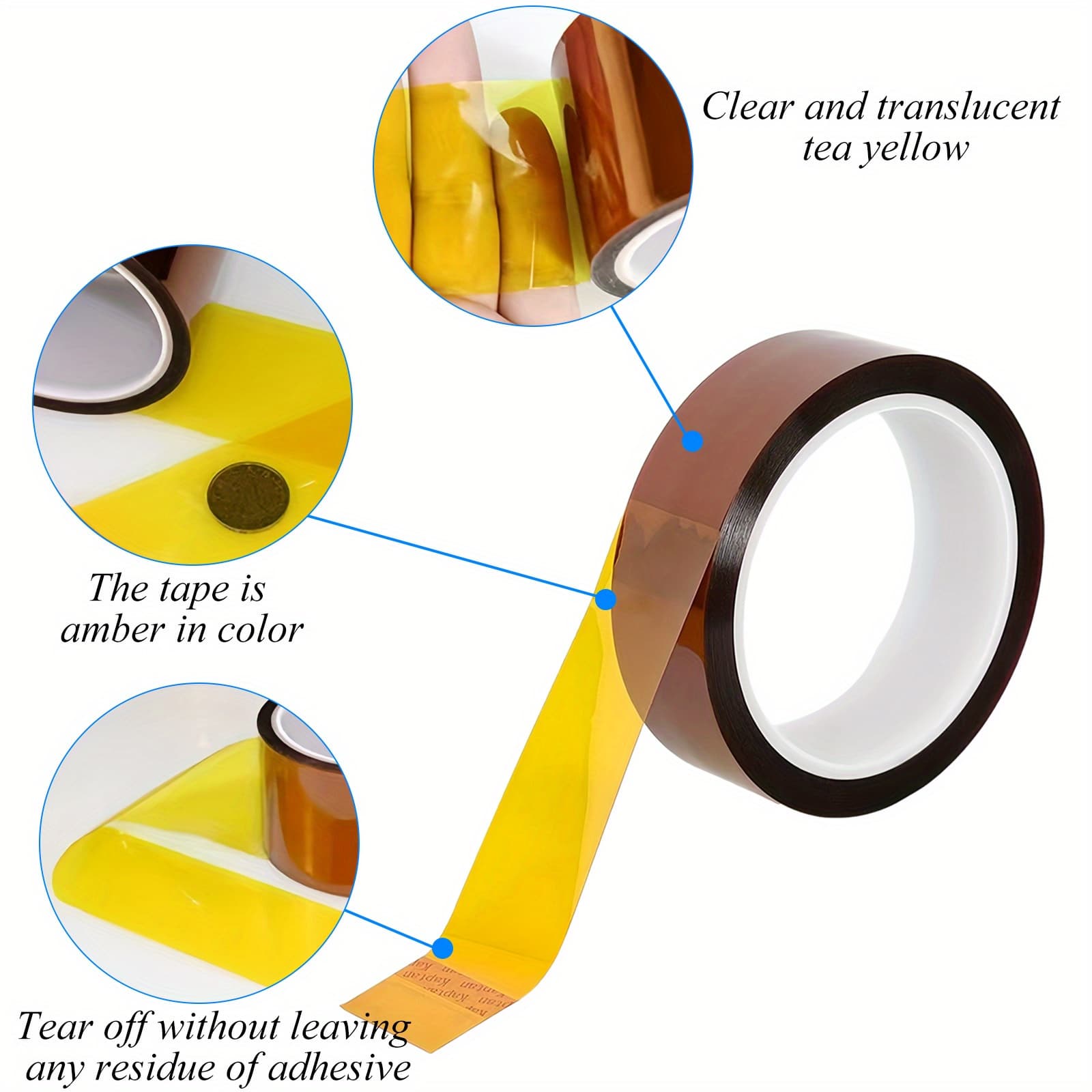

Made with polyimide film and high-temperature silicone adhesive, this amber tape offers excellent heat resistance, electrical insulation and dimensional stability. It is widely used for PCB solder masking, gold finger protection, SMT/reflow processes and high-temperature insulation.
Item No :
SM-005PIProduct Origin :
Dongguan, ChinaColor :
AmberLead Time :
15 Working daysWidth :

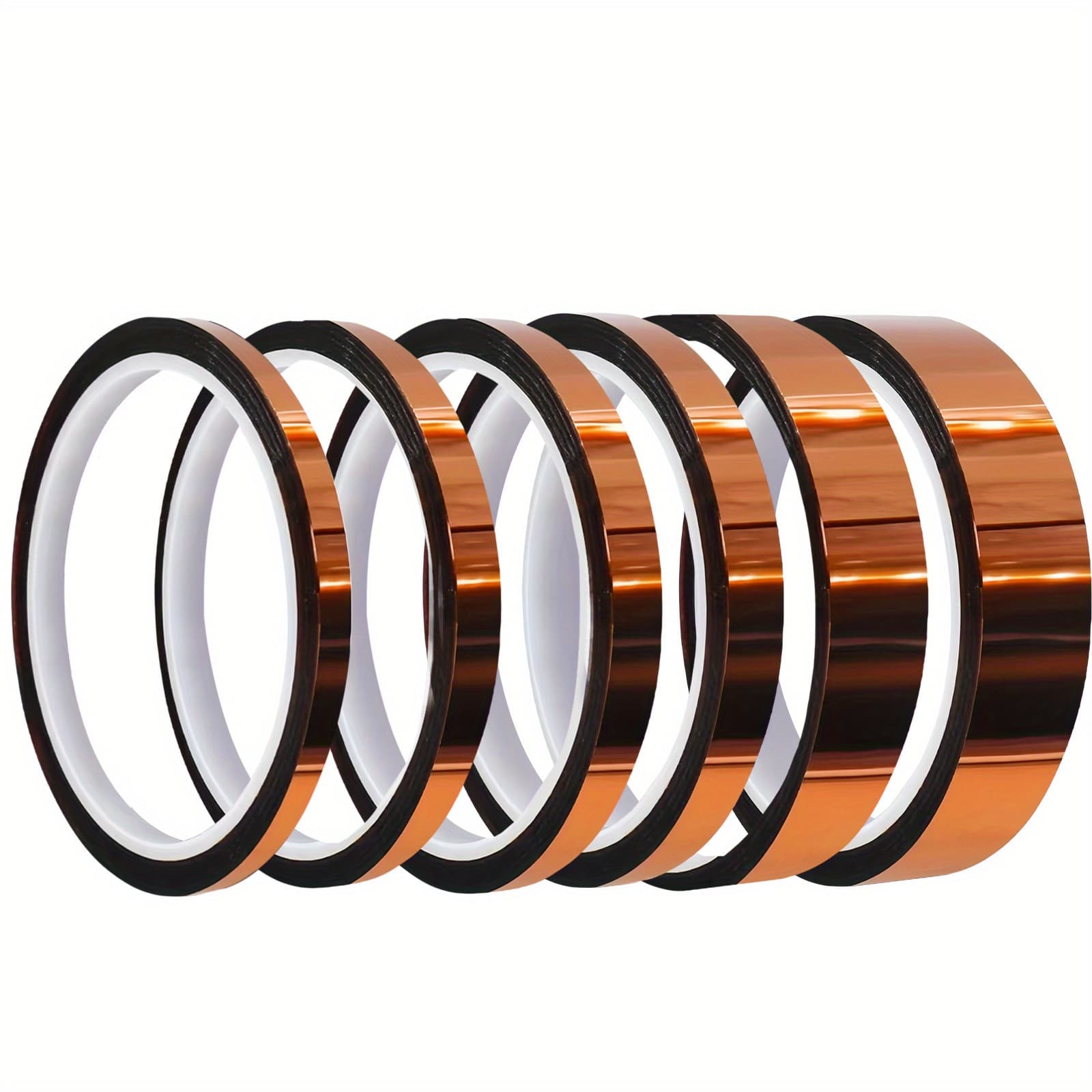

2-1000mmLENGTH :
33m or customizedThickness(mm) :
0.03mm-0.3mm

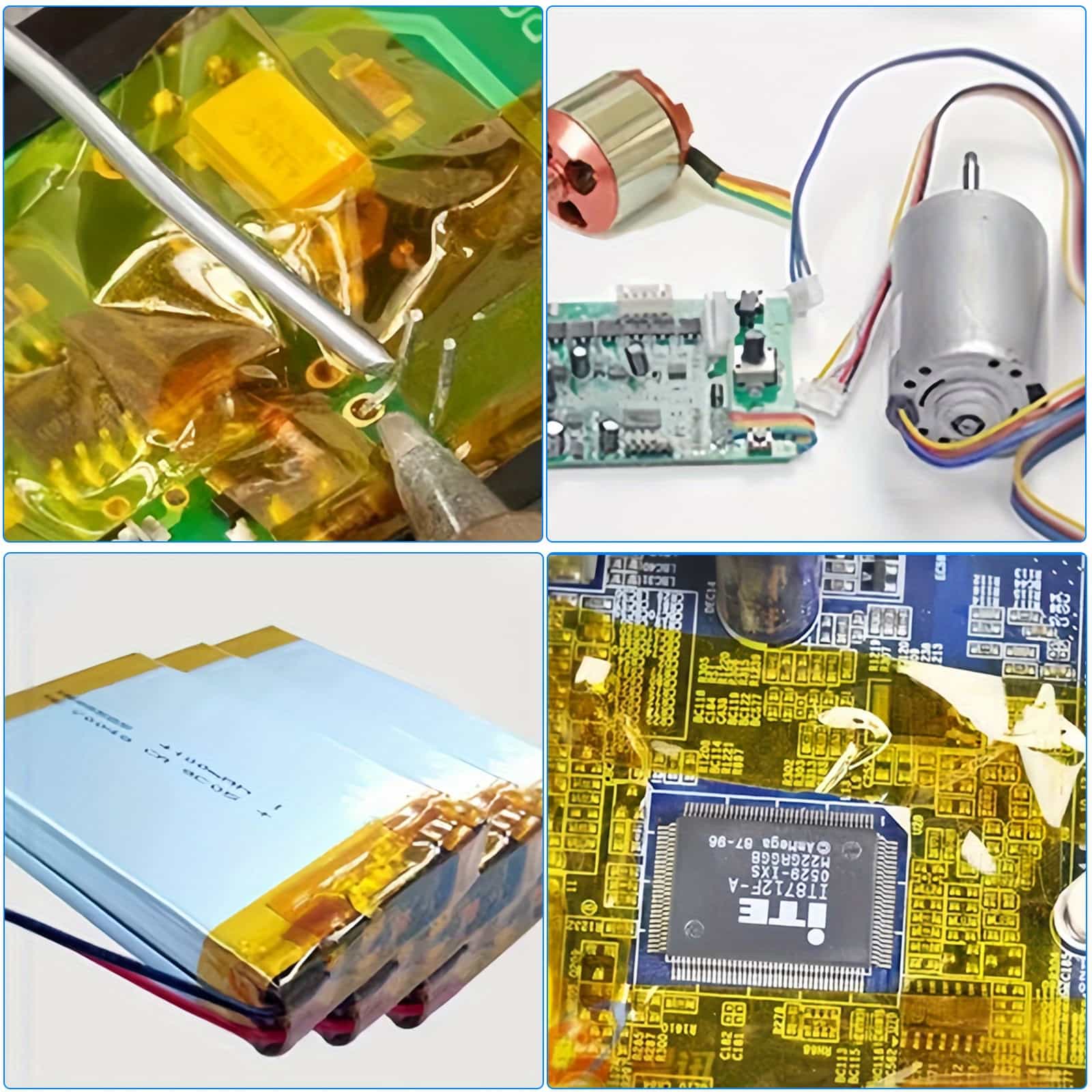

1. PCB & Electronics
Gold finger masking, PCB solder masking, SMT, Reflow soldering, Component protection

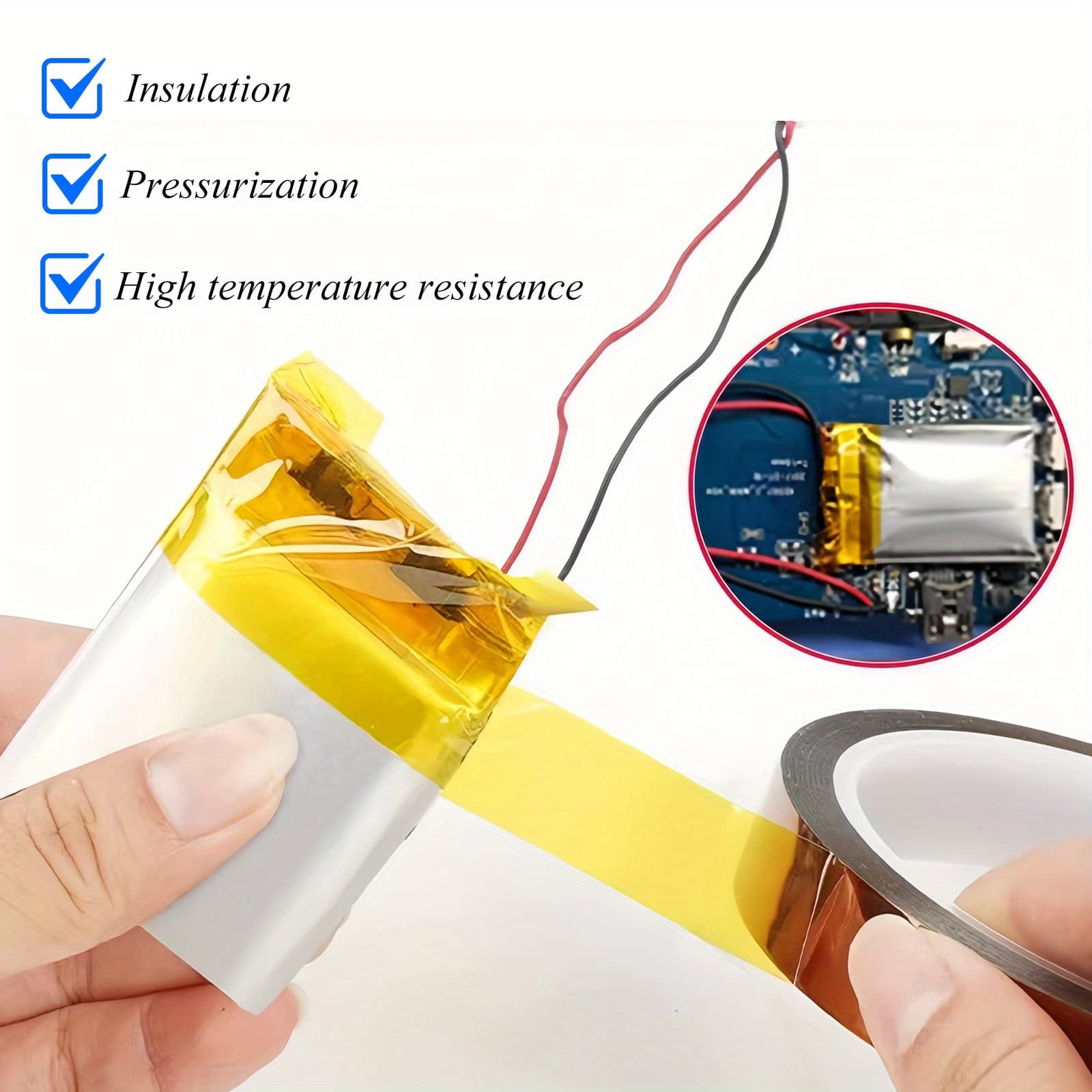

2. Electrical Insulation
Transformers, Motors, Coils, Wires, Electronic components
3. High-Temperature Masking
Powder coating, Plating, Anodizing, High-temperature painting
Polyimide tape is commonly used for gold finger protection, PCB masking and electrical insulation where ordinary masking tapes cannot withstand the process temperature.
| Item | Specification |
|---|---|
| Material | Polyimide Film + Silicone Adhesive |
| Color | Amber |
| Thickness | 0.03 mm |
| Length | 33 m |
| Tensile Strength | ≥140 N/25 mm |
| Elongation | ≥40% |
| Adhesion | ≥4.5 N/25 mm |
| Breakdown Voltage | 4 kV |
| Temperature Resistance | 260°C |
Need a specific width, thickness, length or die-cut shape?
We provide slitting, custom sizes and die-cut polyimide tape for OEM and industrial applications.
